Select Model

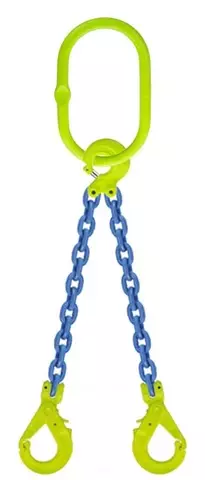

2leg Chain Assembly Grabiq MFX CLD GBK 8 3500
Item Number: 2017303
Price under request
You can ask for a quote adding the item to the shopcart
Price under request
Select Model
2leg Chain Assembly Grabiq MFX CLD GBK 8 3500
Item Number: 2017303
Price under request
You can ask for a quote adding the item to the shopcartProduct Technical Information
-
Grade
100 -
Master Link
-
Coupling Item One
-
Chain Component
-
Safety Factor
4:1 -
Main Material
Steel -
Packaging Unit (PU)
pcs -
Temperature Range
-40° C to + 200° C -
Packaging Unit (PU) Content
1
Variants information
| Item Number | Item Name | Price | Stock | Purchase | Chain Diameter | WLL t Angle 0°- 45° | Hook Component | Google Merchant Item Name | Product Name | WLL t Angle 45°- 60° | Weight for 1m | Weight per Meter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2017303
|
2leg Chain Assembly Grabiq MFX CLD GBK 8 3500 |
Price under request You can ask for a quote adding the item to the shopcart |
|
8 mm | 3.5 t |
|
2.5 t | 8.9 kg | 2.8 kg/m | |||
|
2017304
|
2leg Chain Assembly Grabiq MFX CLD GBK 10 5600 |
Price under request You can ask for a quote adding the item to the shopcart |
|
10 mm | 5.6 t |
|
4 t | 13.7 kg | 4.6 kg/m | |||
|
2017305
|
2leg Chain Assembly Grabiq MFX CLD GBK 13 9300 |
Price under request You can ask for a quote adding the item to the shopcart |
|
13 mm | 9.1 t |
|
6.5 t | 23.8 kg | 8.8 kg/m | |||
|
2017306
|
2leg Chain Assembly Grabiq MFX CLD GBK 16 14000 |
Price under request You can ask for a quote adding the item to the shopcart |
|
16 mm | 14 t |
|
10 t | 36.9 kg | 13.4 kg/m | |||
|
2017307
|
2leg Chain Assembly Grabiq MFX CLD EGKN 8 3500 |
Price under request You can ask for a quote adding the item to the shopcart |
|
8 mm | 3.5 t |
|
2.5 t | 8.3 kg | 2.8 kg/m | |||
|
2017308
|
2leg Chain Assembly Grabiq MFX CLD EGKN 10 5600 |
Price under request You can ask for a quote adding the item to the shopcart |
|
10 mm | 5.6 t |
|
4 t | 12.8 kg | 4.6 kg/m | |||
|
2017309
|
2leg Chain Assembly Grabiq MFX CLD EGKN 13 9300 |
Price under request You can ask for a quote adding the item to the shopcart |
|
13 mm | 9.1 t |
|
6.5 t | 21.1 kg | 8.8 kg/m | |||
|
2017310
|
2leg Chain Assembly Grabiq MFX CLD EGKN 16 14000 |
Price under request You can ask for a quote adding the item to the shopcart |
|
16 mm | 14 t |
|
10 t | 35.9 kg | 13.4 kg/m |
