Select Model

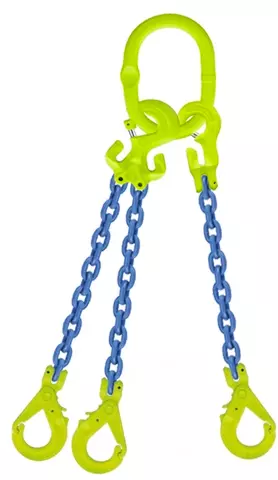

3leg Chain Assembly Grabiq MF CGD CG GBK 6 3100
Item Number: 2008849
Price under request
You can ask for a quote adding the item to the shopcart
Price under request
Select Model
3leg Chain Assembly Grabiq MF CGD CG GBK 6 3100
Item Number: 2008849
Price under request
You can ask for a quote adding the item to the shopcartProduct Technical Information
-
Grade
100 -
Master Link
-
Coupling Item One
-
Coupling Item Two
-
Chain Component
-
Safety Factor
4:1 -
Main Material
Steel -
Packaging Unit (PU)
pcs -
Temperature Range
-40° C to + 200° C -
Packaging Unit (PU) Content
1
Variants information
| Item Number | Item Name | Price | Stock | Purchase | Chain Diameter | WLL t Angle 0°- 45° | Hook Component | Google Merchant Item Name | Product Name | WLL t Angle 45°- 60° | Weight for 1m | Weight per Meter | Norms |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2008849
|
3leg Chain Assembly Grabiq MF CGD CG GBK 6 3100 |
Price under request You can ask for a quote adding the item to the shopcart |
|
6 mm | 3.1 t |
|
2.2 t | 4 kg | 2.4 kg/m | ||||
|
2008850
|
3leg Chain Assembly Grabiq MF CGD CG EGKN 6 3100 |
Price under request You can ask for a quote adding the item to the shopcart |
|
6 mm | 3.1 t |
|
2.2 t | 3.7 kg | 2.4 kg/m | EN 818-4 | |||
|
2008851
|
3leg Chain Assembly Grabiq MF CGD CG GBK 8 5200 |
Price under request You can ask for a quote adding the item to the shopcart |
|
8 mm | 5.2 t |
|
3.7 t | 6.5 kg | 4.2 kg/m | ||||
|
2008852
|
3leg Chain Assembly Grabiq MF CGD CG EGKN 8 5200 |
Price under request You can ask for a quote adding the item to the shopcart |
|
8 mm | 5.2 t |
|
3.7 t | 5.7 kg | 3.2 kg/m | EN 818-4 | |||
|
2008853
|
3leg Chain Assembly Grabiq MF CGD CG GBK 10 8400 |
Price under request You can ask for a quote adding the item to the shopcart |
|
10 mm | 8.4 t |
|
6 t | 10.5 kg | 6.9 kg/m | ||||
|
2008854
|
3leg Chain Assembly Grabiq MF CGD CG EGKN 10 8400 |
Price under request You can ask for a quote adding the item to the shopcart |
|
10 mm | 8.4 t |
|
6 t | 9.1 kg | 6.9 kg/m | EN 818-4 | |||
|
2008855
|
3leg Chain Assembly Grabiq MF CGD CG GBK 13 14t |
Price under request You can ask for a quote adding the item to the shopcart |
|
13 mm | 14 t |
|
10 t | 18 kg | 13.2 kg/m | ||||
|
2008856
|
3leg Chain Assembly Grabiq MF CGD CG EGKN 13 14t |
Price under request You can ask for a quote adding the item to the shopcart |
|
13 mm | 14 t |
|
10 t | 17.5 kg | 13.2 kg/m | EN 818-4 | |||
|
2008857
|
3leg Chain Assembly Grabiq MF CGD CG GBK 16 21t |
Price under request You can ask for a quote adding the item to the shopcart |
|
16 mm | 21 t |
|
15 t | 27.5 kg | 20.1 kg/m | ||||
|
2008858
|
3leg Chain Assembly Grabiq MF CGD CG EGKN 16 21t |
Price under request You can ask for a quote adding the item to the shopcart |
|
16 mm | 21 t |
|
15 t | 25.8 kg | 20.1 kg/m | EN 818-4 |
