Select Model

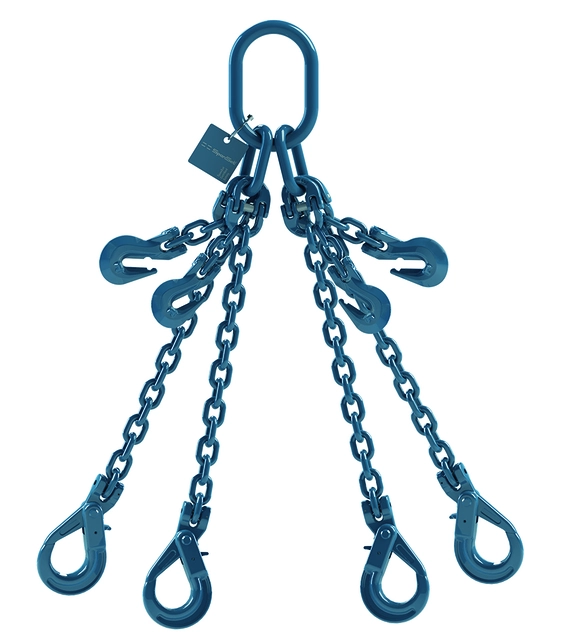

4-Exoset CRFX CFX 6
Item Number: 2009096
Price under request
You can ask for a quote adding the item to the shopcart
Price under request
Select Model
4-Exoset CRFX CFX 6
Item Number: 2009096
Price under request
You can ask for a quote adding the item to the shopcartProduct Technical Information
-
Grade
100 -
Chain Component
-
Safety Factor
4:1 -
Main Material
Steel -
Norms
EN 818-4 -
Packaging Unit (PU)
pcs -
Temperature Range
-40° C to + 200° C -
Packaging Unit (PU) Content
1 -
Color
Blue
Variants information
| Item Number | Item Name | Price | Stock | Purchase | Chain Diameter | WLL t Angle 0°- 45° | Hook Component | Master Link | Coupling Item One | Shortener | Google Merchant Item Name | Product Name | WLL t Angle 45°- 60° | Weight for 1m | Weight per Meter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2009096
|
4-Exoset CRFX CFX 6 |
Price under request You can ask for a quote adding the item to the shopcart |
|
6 mm | 2.9 t |
|
|
|
|
2.1 t | |||||
|
2009103
|
4-Exoset CBX CFX 6 |
Price under request You can ask for a quote adding the item to the shopcart |
|
6 mm | 2.9 t |
|
|
|
|
2.1 t | |||||
|
2009104
|
4-Exoset CRFX CFX 8 |
Price under request You can ask for a quote adding the item to the shopcart |
|
8 mm | 5.2 t |
|
|
|
|
3.7 t | |||||
|
2009105
|
4-Exoset CBX CFX 8 |
Price under request You can ask for a quote adding the item to the shopcart |
|
8 mm | 5.2 t |
|
|
|
|
3.7 t | |||||
|
2009106
|
4-Exoset CRFX CFX 10 |
Price under request You can ask for a quote adding the item to the shopcart |
|
10 mm | 8.4 t |
|
|
|
|
6 t | |||||
|
2009107
|
4- Exoset CBX CFX 10 |
Price under request You can ask for a quote adding the item to the shopcart |
|
10 mm | 8.4 t |
|
|
|
|
6 t | |||||
|
2009108
|
4-Exoset CRFX CFX 13 |
Price under request You can ask for a quote adding the item to the shopcart |
|
13 mm | 13.6 t |
|
|
|
|
9.7 t | |||||
|
2009109
|
4-Exoset CBX CFX 13 |
Price under request You can ask for a quote adding the item to the shopcart |
|
13 mm | 13.6 t |
|
|
|
|
9.7 t | |||||
|
2009110
|
4-Exoset CRFX CFX 16 |
Price under request You can ask for a quote adding the item to the shopcart |
|
16 mm | 21 t |
|
|
|
|
15 t | |||||
|
2009111
|
4-Exoset CBX CFX 16 |
Price under request You can ask for a quote adding the item to the shopcart |
|
16 mm | 21 t |
|
|
|
|
15 t | |||||
|
2026155
|
4-Exoset CSHC CGH 6 |
Price under request You can ask for a quote adding the item to the shopcart |
|
6 mm | 2.9 t |
|
|
|
|
2.1 t | 7.8 kg | 3.6 kg/m | |||
|
2026156
|
4-Exoset CSHC CGH 8 |
Price under request You can ask for a quote adding the item to the shopcart |
|
8 mm | 5.2 t |
|
|
|
|
3.7 t | 12 kg | 6.4 kg/m | |||
|
2026157
|
4-Exoset CSHC CGH 10 |
Price under request You can ask for a quote adding the item to the shopcart |
|
10 mm | 8.4 t |
|
|
|
|
6 t | 20.1 kg | 10 kg/m | |||
|
2026158
|
4-Exoset CSHC CGH 13 |
Price under request You can ask for a quote adding the item to the shopcart |
|
13 mm | 14 t |
|
|
|
|
10 t | 37.5 kg | 17.2 kg/m | |||
|
2026159
|
4-Exoset CSHC CGH 16 |
Price under request You can ask for a quote adding the item to the shopcart |
|
16 mm | 21 t |
|
|
|
|
15 t | 61 kg | 26 kg/m | |||
|
2026160
|
4-Exoset CSLH CGH 6 |
Price under request You can ask for a quote adding the item to the shopcart |
|
6 mm | 2.9 t |
|
|
|
|
2.1 t | 7.8 kg | 3.6 kg/m | |||
|
2026161
|
4-Exoset CSLH CGH 8 |
Price under request You can ask for a quote adding the item to the shopcart |
|
8 mm | 5.2 t |
|
|
|
|
3.7 t | 12 kg | 6.4 kg/m | |||
|
2026162
|
4-Exoset CSLH CGH 10 |
Price under request You can ask for a quote adding the item to the shopcart |
|
10 mm | 8.4 t |
|
|
|
|
6 t | 20.1 kg | 10 kg/m | |||
|
2026163
|
4-Exoset CSLH CGH 13 |
Price under request You can ask for a quote adding the item to the shopcart |
|
13 mm | 14 t |
|
|
|
|
10 t | 37.5 kg | 17.2 kg/m | |||
|
2026164
|
4-Exoset CSLH CGH 16 |
Price under request You can ask for a quote adding the item to the shopcart |
|
16 mm | 21 t |
|
|
|
|
15 t | 61 kg | 26 kg/m |
